Load Break Switch
HOME > PRODUCT > Load Break Switch

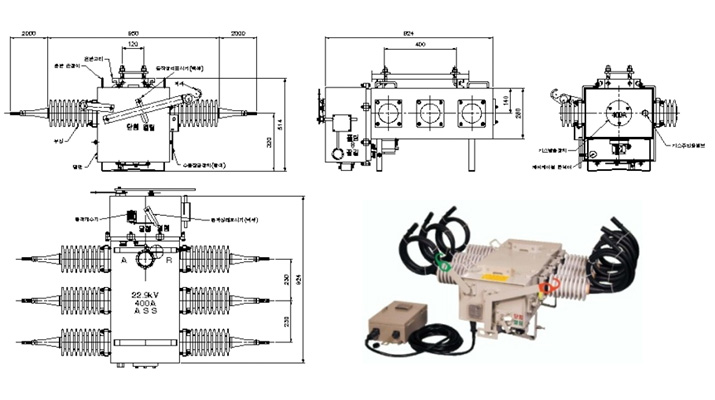

Dimensin & Config. (SF6 Gas Insulated Pole mounted LBS)
| Rated Voltage | Rated Current | Rated Breaking Current | Insulated Method | AC Withstand Voltage | Lightning Impulse |
|---|---|---|---|---|---|
| 25.8kV | 630A | 12.5kA | Solid&SF6 Gas | 60kV/1min | 150kV BIL |

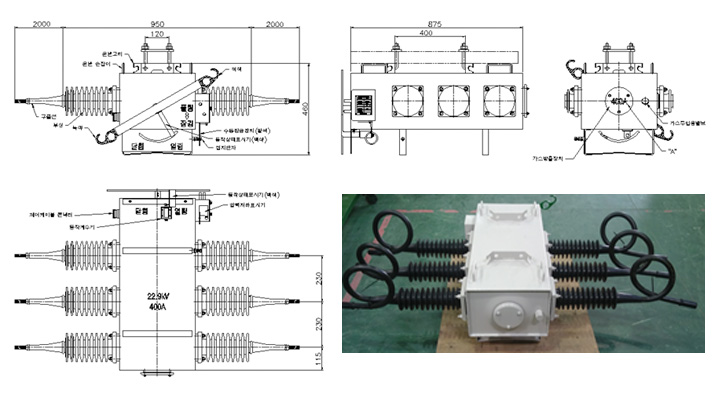

Dimensin & Config. (Pole mounted LBS with Rubber Bushing)
| Rated Voltage | Rated Current | Rated Breaking Current | Insulated Method | AC Withstand Voltage | Lightning Impulse |
|---|---|---|---|---|---|
| 25.8kV | 630A | 12.5kA | SF6 Gas | 60kV/1min | 150kV BIL |

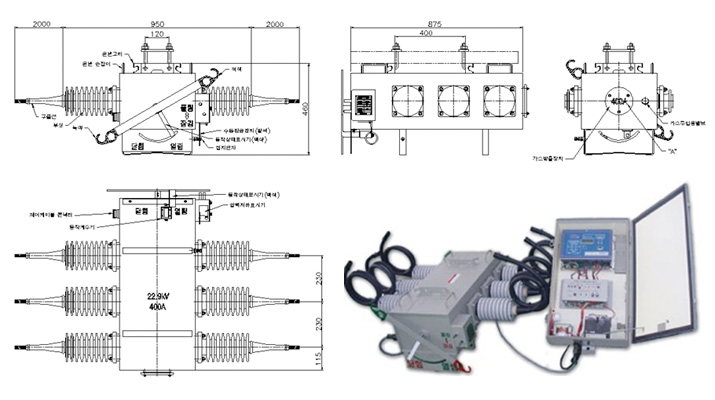

Dimensin & Config. (SF6 Gas Insulated Automatic Section Switch)
| Rated Voltage | Rated Current | Rated Breaking Current | Insulated Method | AC Withstand Voltage | Lightning Impulse |
|---|---|---|---|---|---|
| 25.8kV | 630A | 12.5kA | SF6 Gas | 60kV/1min | 150kV BIL |
